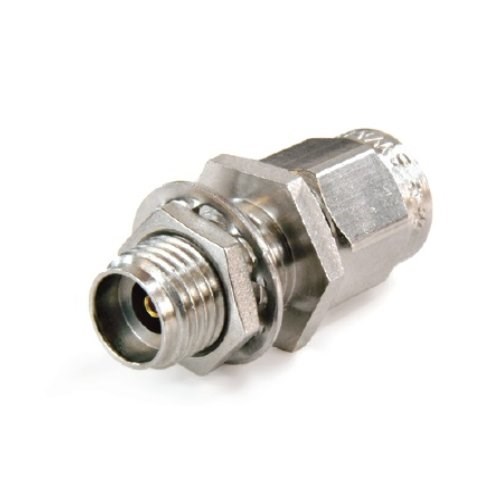

1030-10SF, Adapter, Bulkhead, 2,92mm F/M

S10401255
Not in stock
Product question
Buy

What would you like to know about 1030-10SF, Adapter, Bulkhead, 2,92mm F/M?

Send

Description

In Series 40 GHz 2.92mm (K)

Model1030-10SFSeries

2.92mm (K)

Gender

Female – Male

Frequency (GHz)

40, 36, 33, 27, 18

Mounting

Bulkhead

Features

•Mode Free Through 40.0 GHz

•Low VSWR

•DC to 27.0 GHz……1.10:1 max

•27.0 to 40.0 GHz….1.15:1 max

•Minimum VSWR Contribution When Used as Connector Savers

•Performance Consistency Unit-to-unit

•Temperature Rating -55°C to +165°C

Interface

•Per MIL-STD-348 SMA Figs. 323-1 and 323-2

Construction

•Housing: Stainless Steel, Passivated

•Contact: Beryllium Copper (BeCu) Gold Plated Per MIL-G-45204

•Center Contact Capture: Ultem 1000 Per ASTM D5205 and KEL-F Per ASTM D1430

More ...Close
