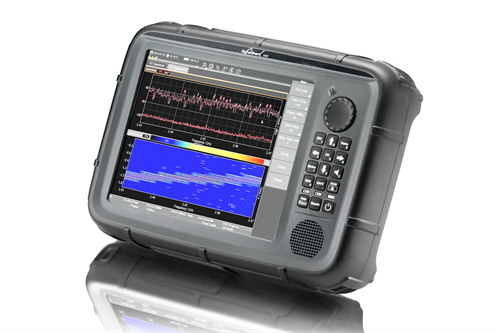

SignalShark - on the hunt for signals. Detect, analyze and localize radio signals. The SignalShark is highly efficient at detecting signals and entire frequency ranges. This is because the highly sensitive sensor technology developed by Narda detects changes in an increasingly complex radio spectrum in real time and without gaps. This makes the SignalShark the perfect instrument/tool for real-time spectrum analysis, monitoring and localization. Detect, quickly evaluate and localize signals in real time Why is this so important? Modern technologies such as the "Internet of Things" (IoT), machine-to-machine (M2M) or car-to-car (C2C) communication as well as growing mobile networks such as 4G and 5G share frequency ranges. The earlier you detect overlaps and, in particular, interference signals, the faster you can initiate countermeasures.
Highlights
- Wide frequency range: 8 kHz to 8 GHz
- Easy handling thanks to 10.4" touchscreen with user-friendly user interface
- Optimum signal detection thanks to wide dynamic range (HDR) and excellent high-frequency (HF) properties
- Measurements on site, remotely and in the laboratory
- Analyze and evaluate based on classification criteria
- Localization within milliseconds using automatic direction finding antennas
- Integrated Windows for easy integration
- Integrated Python for creating your own and individual applications
40 MHz real-time spectrum analysis with the SignalShark
The SignalShark offers you reliable detection of extremely short and rare events within the 40 MHz real-time bandwidth. It calculates the spectrum by applying the Fast Fourier Transform (FFT) to overlapping time segments of the underlying IQ data within its real-time bandwidth.
At least as important: the Propability of Intercept (POI). It describes how short a signal may be so that it is captured in every case and without level reduction. Influencing variables are, for example, the maximum resolution bandwidth RBW, the sampling rate, the length of the FFT windows and their overlap. In all these respects, the SignalShark is in no way inferior to conventional laboratory analyzers.
Monitoring with the SignalShark
With its ITU-approximate spectrum monitoring dynamics, a second receiver path and demodulators, the SignalShark is a perfect monitoring receiver. The high dynamic range (HDR) ensures that you can reliably detect even the weakest signals in the presence of very strong signals. This is a basic requirement for most tasks in the field of radio monitoring. A so-called preselector also makes it possible to suppress frequency ranges that could interfere with the measurement.
Localization with the SignalShark
Thanks to its high signal sensitivity, the SignalShark can also detect, assign and demodulate distant signals. It is then often necessary to localize their origin. Narda offers a large number of automatic and directional antennas for this purpose. Each with unique properties, and in combination with the SignalShark an unbeatable team.
For example, with Narda's automatic direction finding antenna (ADFA) and the very powerful mapping and localization firmware, you can obtain reliable bearings in no time at all. The bearing results are processed by the SignalShark without an external PC. Localization has never been so easy!
